Balanced Fluid Head

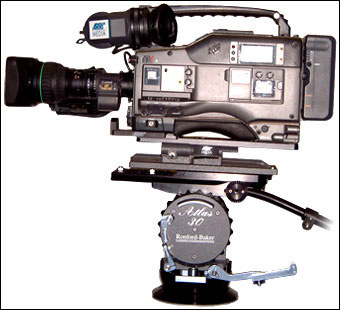

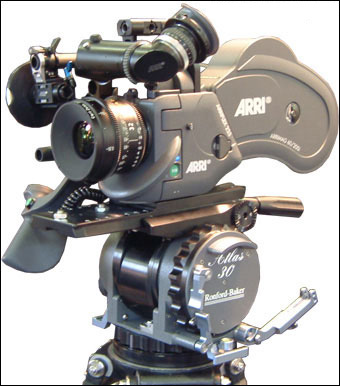

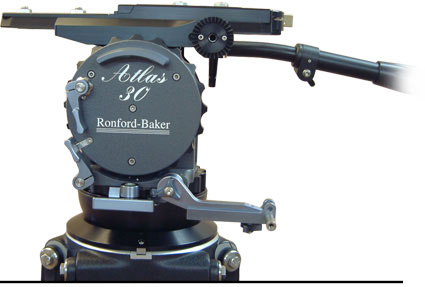

	The "Atlas 30" is a completely new design head, with a patented counterbalance system. Capable of taking camera's up to 30 Kgs ( 66 lbs ) @ 25 cm ( 10" ) above the heads pivotal centre. Operated by a single control knob, from 0 - 100 %. Incorporating the well proven Ronford-Baker fluid system, with 7 stages of fluid control, on pan & tilt. With a zero ( free ) position. These give unprecedented smoothness & accuracy of control & balance under all situations. Technical Specifications Weight : 9 Kgs / 19.80lbs. Height : 26 cm / 10 ¼” Height from tripod top with ball fitting 20 cm / 8” With Mitchell fitting 25 cm / 9 ¾” Width : 23 cm / 9” Depth : 18 cm / 7” Maximum load : 30 Kgs. Operating temperatures : Tilt range + & - 90 degrees. Pan range 360 degrees continuous. Pan bar mounts. Two on ratchet discs. Lifting handles : Yes Head bases 150 m/m or Mitchell ( adaptor). Stand off protection on both sides of the head. Sand proof sealed. Camera mountings Arri Dovetail slide or 2 x Sliding Quick release plates. Short plate has 7” / 18 cm movement. The Long plate has 13” / 33 cm movement. Fluid system, 7 steps pan & tilt with zero positions at either end of the scale. Counterbalance this can go into “Free” position for Whip pans. Spirit level with Tritium light source. Adjustable Eyepiece levelling bracket. Smooth positive braking on pan & tilt.
