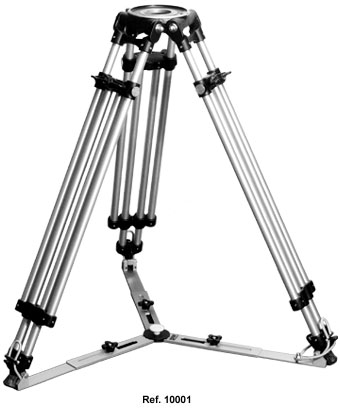

HEAVY DUTY TRIPOD

Head fittings Mitchell top plate supplied as standard. 150mm bowl can be supplied on request. Technical Specifications Materials and Finish Castings are LM25 anodised, stove enameled black texture. Tubes are 1” dia x 16swg HE30TF alloy, polished and anodized, with nylon wipers and nylon locking pads. Stainless Steel spikes to feet, with rubber covers. Locking levers are anodized and stove enamelled black texture. All steel parts are hardened where necessary, and chrome plated. Height With legs spread at 1’6” (45.7cm): closed 3ft’ (91.4cm), fully extended 5’6” (167.6cm). Weight 22lb (10kg). Spreader An infinitely adjustable spreader with a strong elastic clip-down device, which is secured in seconds. Made from high tensile anodized aluminium with large diameter locking hand-wheels to adjust length of spread; steel parts hardened and heavily chromium plated. Dimensions (center to foot) minimum 1’5” (43cm), maximum 2’1” (64cm). Weight 4lb 7oz (2kg). Baby Tripod As above, but height range from 1’8” (50.8cm) to 3’ (91.4cm) Weight 18lb (8kg). Transit Cases Specification Moulded black grain AVS. Dimensions 42” x 12” x 11” (105cm x 30cm x 27.5cm) standard. 26” x 12” x 11” (65cm x 30cm x 27.5cm) baby. Weight 11lb (5kg) standard, 8lb (3.5kg) baby.

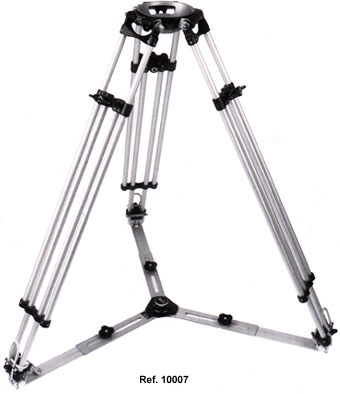

Head fittings 150cm bowl supplied as standard. Mitchell plate or 100cm bowl supplied to order. Technical Specifications Materials and Finish Castings are LM25 anodised, stove enamelled black texture. Tubes are ¾” dia x 16swg HE30TF alloy, polished and anodised, with nylon wipers and nylon locking pads. Stainless Steel spikes to feet, with rubber covers. Locking levers are anodised and stove enamelled black texture. All steel parts are hardened where necessary, and chrome plated. Height With legs spread at 1’6” (45.7cm): closed 3ft’ (91.4cm), fully extended 5’6” (167.6cm). Weight 14lb (6.5kg). Spreader An infinitely adjustable spreader, integral tripod, with a strong elastic clip-down device, which is secured in seconds. Made from high tensile anodised aluminium with large diameter locking hand-wheels to adjust length of spread; steel parts hardened and heavily chromium plated. Dimensions (centre to foot) minimum 1’5” (43cm), maximum 2’1” (64cm). Weight 4lb 7oz (2kg). Baby Tripod As above, but height range from 1’8” (50.8cm) to 3’ (91.4cm) Weight 11lb (5kg). Transit Cases Specification Moulded black grain AVS. Dimensions 42” x 12” x 11” (105cm x 30cm x 27.5cm) standard. 26” x 12” x 11” (65cm x 30cm x 27.5cm) baby. Weight 11lb (5kg) standard, 6lb (2.7kg) baby.

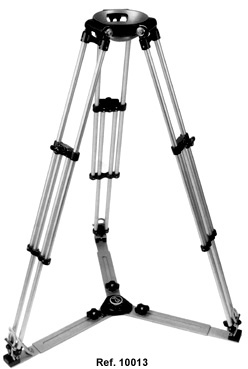

Head fittings 150cm bowl supplied as standard. Mitchell plate or 100cm bowl supplied to order. Technical Specifications Materials and Finish Castings are LM25 anodised, stove enamelled black texture. Tubes are 5/8” dia x 16swg HE30TF alloy, polished and anodised, with nylon wipers and nylon locking pads. Stainless Steel spikes to feet, with rubber covers. Locking levers are anodised and stove enamelled black texture. All steel parts are hardened where necessary, and chrome plated. Height With legs spread at 1’6” (45.7cm): closed 3ft’ (91.4cm), fully extended 5’6” (167.6cm). Weight 7lb (3.1kg). Spreader An infinitely adjustable spreader, integral tripod, with a strong elastic clip-down device, which is secured in seconds. Made from high tensile anodised aluminium with large diameter locking hand-wheels to adjust length of spread; steel parts hardened and heavily chromium plated. Dimensions (centre to foot) minimum 1’5” (43cm), maximum 2’1” (64cm). Weight 4lb 7oz (2kg). Baby Tripod As above, but height range from 1’8” (50.8cm) to 3’ (91.4cm) Weight 5lb (2.3kg). Transit Cases Specification Moulded black grain AVS. Dimensions 42” x 12” x 11” (105cm x 30cm x 27.5cm) standard. 26” x 12” x 11” (65cm x 30cm x 27.5cm) baby. Weight 11lb (5kg) standard, 6lb (2.7kg) baby.

Head castings 150cm or 100mm bowl. Other fittings can be supplied on request. Stirrup Casings Pivot from head and terminate in very efficient nylon cam clamps operated by large diameter handwheels, make the changeover from one set of legs to another a matter of seconds. The combination of legs covers any height from floor to 2’ 11” (88.9cm). Technical Specifications Materials Manufactured from LM25 alloy castings and high tensile alloy tube. Finish Castings are anodised and stove enameled black texture. Tubes are polished and satin anodised. Steel parts are chromium plated. Tie down points are provided on head and bottom of telescopic legs. Height Low angle 7 ½” (19.5cm). Stub legs 13 ½” (34.29cm). Telescopic legs max. 2’ 11” (88.9cm), min 2’ (60.98cm). Net Weight Head and stirrups only 5lb 2oz (2.32kg) Steel Feet 14oz (0.39kg) Stub legs 12oz (0.34kg) Telescopic legs 3lb 4oz (1.47kg) Limpets 6lb 10oz (3kg) Total weight 10lb (4.5kg) Transit Cases Specification Rigidised aluminum. Dimensions 21¼” x 13¼” x 10¼” (54cm x 37cm x 26cm) standard. 26” x 12” x 11” (65cm x 30cm x 27.5cm) baby. Weight 14lb (6kg).

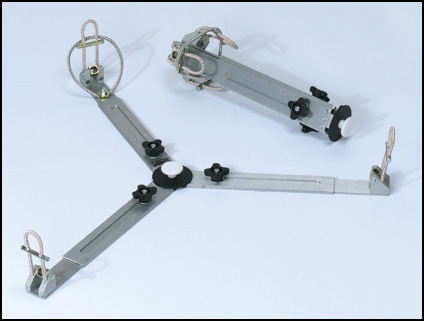

Spreaders
