Ronford-Baker

H.D. Video Accessories

 Ronford-Baker have utilised over 300 years combined experience within the film & video industries, together with the latest CNC machinery to design and manufacture a selection of high quality accessories for H.D. video cameras.

These accessories, like all Ronford Baker’s equipment, are manufactured out of high tensile aluminum, with emphasis on quality and strength.



Set of ‘Moose’ Bars and a ULB-3 Universal Lightweight Bracket


Designed to fit both 15m/m & 19m/m Bars

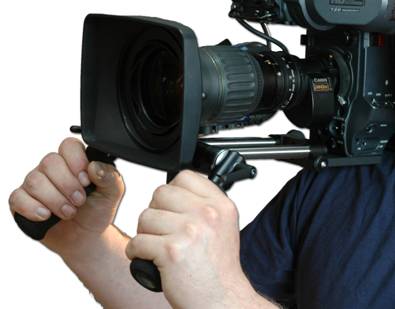

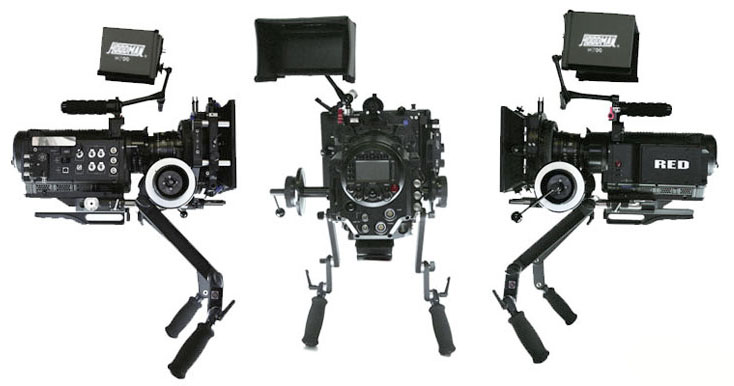

‘Moose’ Bars



·       These fit onto 15m/m x 60m/m centers or 19m/m x 104m/m center bars for hand holding (with both hands).



·       U.S.A option of 15m/m x 60m/m or 15m/m x 100m/m.

·       Manufactured out of high tensile aluminium.



·      Fitted with comfortable soft foam grip handles.



·       Handles are fitted with rosettes that are adjustable at 6º increments.  Lockable in the required position.



·    Additional ‘Cotton Reel’ spacers available to add extra width and length.



 ·   Suitable for the ‘Red’ range of cameras.



·       No Tools required.



Cotton Reel Extension
                     Handgrip Extensions available to add versatility

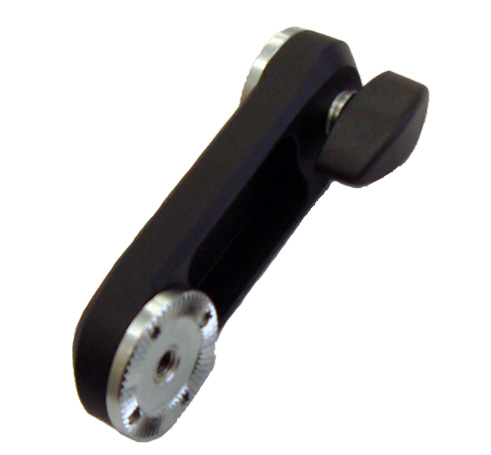

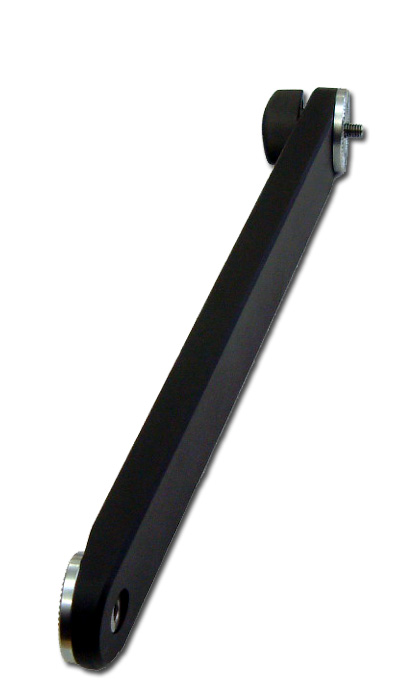

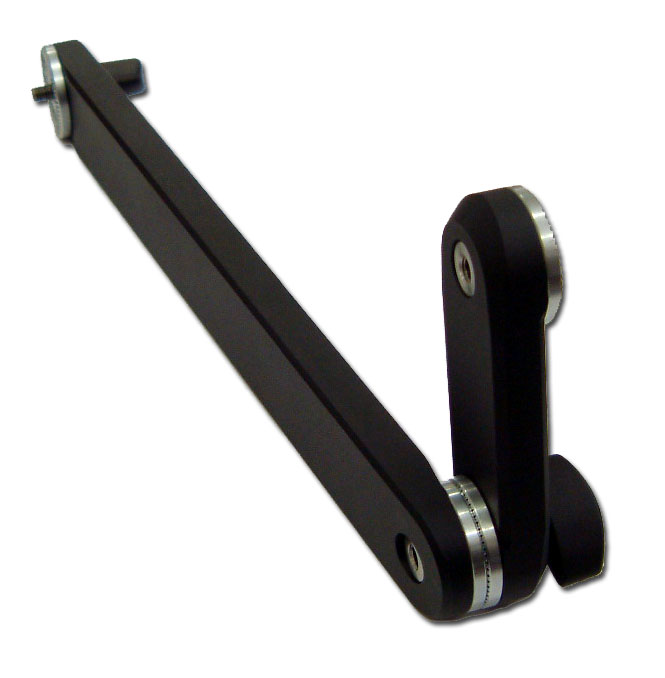

‘Moose’ Bar Flat Extensions



·       Extensions Available at 75m/m, 160m/m or 230m/m Length.



·       Easy attachable to existing 'Moose' bars.



·       No Tools required.

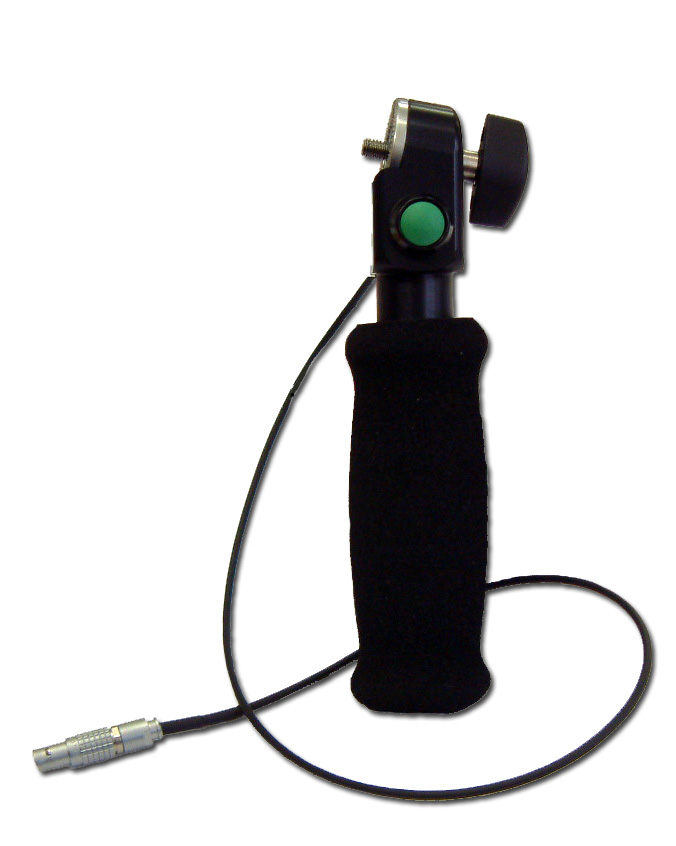

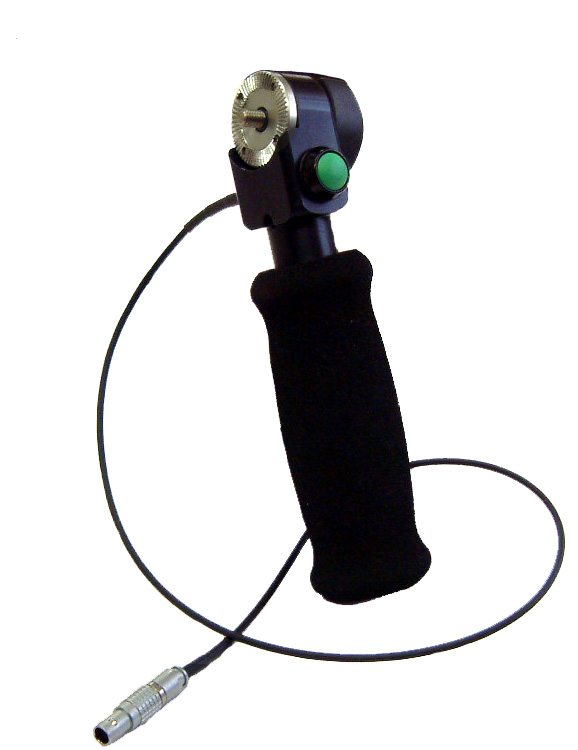

‘Moose’ Bar Switched Handle



·       Available for use with Sony / Panasonic cameras, or ‘Red’ cameras.



·       Switch can be rotated to enable right or left hand, finger or thumb operation.



·     On the 'Red' camera you can configure the switch to control;  Record Start/Stop, Frame Burst, Ramp and Stop Motion Control.



·       Manufactured out of high tensile aluminium.



·       Fitted with comfortable soft foam grip handles.



 ·       Handles are fitted with rosettes that are adjustable at 6º increments.  Lockable in the required position.

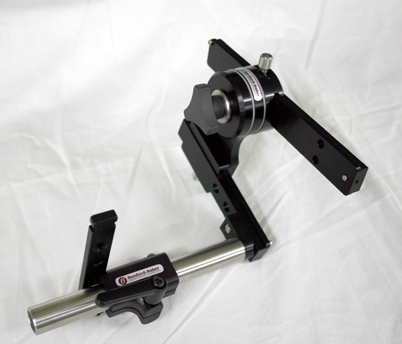

ULB-3 Universal Lightweight Bracket

The Universal Lightweight Bracket replaces the Wedge and Guide on the camera base typically found on cameras like the Sony 700 / 750 / 900 / XDCAM and Panasonic Varicam and HDX 900.

Designed  to fit using the original screws in the camera base, plus the two screws and pillars in the front face of the camera.  This provides additional stability and reduces flex.  The 15m/m bar support is adjustable in both vertical and horizontal plains to suit your camera.

The bracket incorporates a right side rosette for handgrip attachment with the optional left rosette for two-handed operation.

15m/m precision ground stainless steel support bars are supplied in a standard length of 200m/m, other bar lengths available.







 Left Hand Rosette







ULB-1 Universal Lightweight Bracket



A simpler version of the ULB-3, without the front mounting option.  There is no facility to mount the left hand rosette.

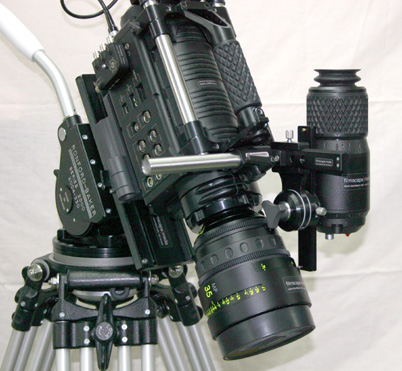

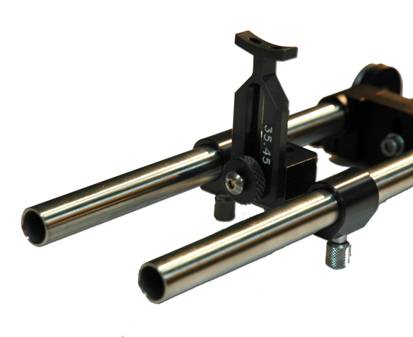

 15m/m Lens Support Brackets




Canon Lens Support Bracket fitted onto 15m/m Bars











·      HJ11, HJ18 & HJ21 Canon Lens Support Brackets.



·      Fujinon Supports made to order.



·      Mounting & Locking onto 15m/m Bars.



·      Yoke / Lens mount is adjustable in both vertical and horizontal planes.

PAP-3 Panasonic Adaptor Plate


        This adaptor plate fits the Varicam and HDX900 cameras.  It is a replacement for the original quick release base adaptor.

        When using the  plate it improves stability and reduces movement.

        To suit the camera offset the plate incorporates variable mounting positions, when using with the Arri 19m/m bridge plate saddle.









SAP-3 Sony Adaptor Plate



    This adaptor plate fits the Sony 700, 750, 900 & XDCAM cameras.

    Both the SAP and PAP adaptor plates are manufactured exclusively for Arri.




Additional Video Accessories



Panasonic Tape Measure Block

· Attaches to the camera handle.  The block has two tape hook mounts, one on the ‘Film Plane’ and one the back @ 17m/m.









·       Sony Version

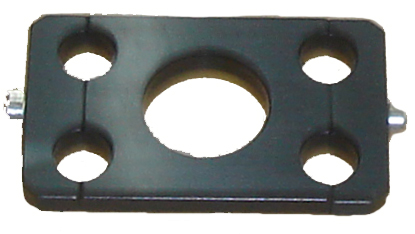

15m/m 4 Rod Support

·  For use with ‘Pro35’.  This clamp is used to hold all four rods taught.





‘S’ Bracket & 15-19m/m bush







Sony Acc. Mount

For lens control mounting

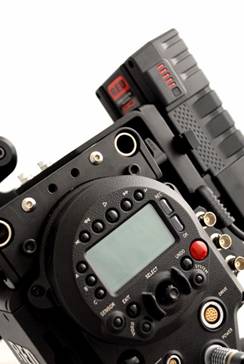

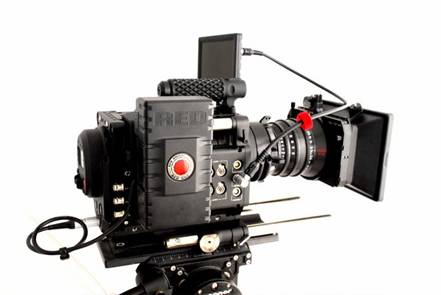

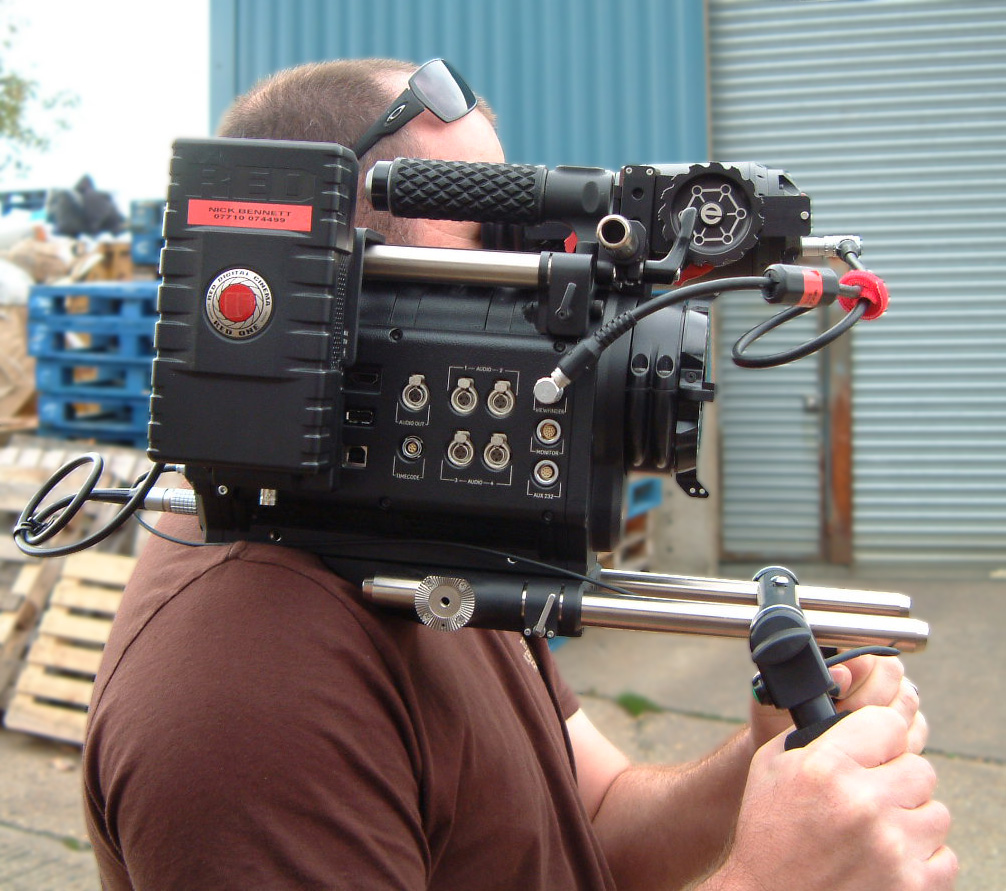

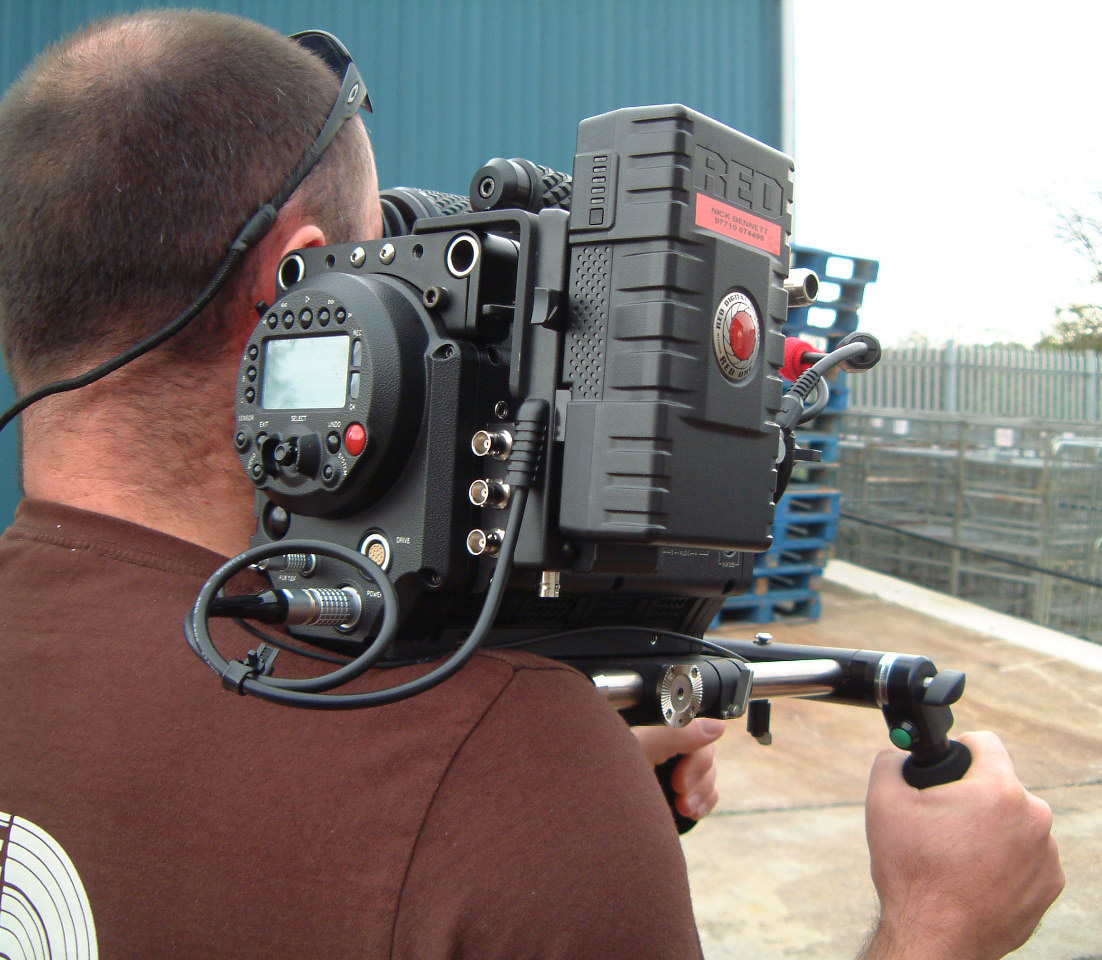

‘Red’ Camera Accessories

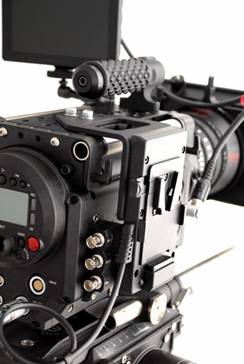

‘Red’ Camera Battery Bracket
