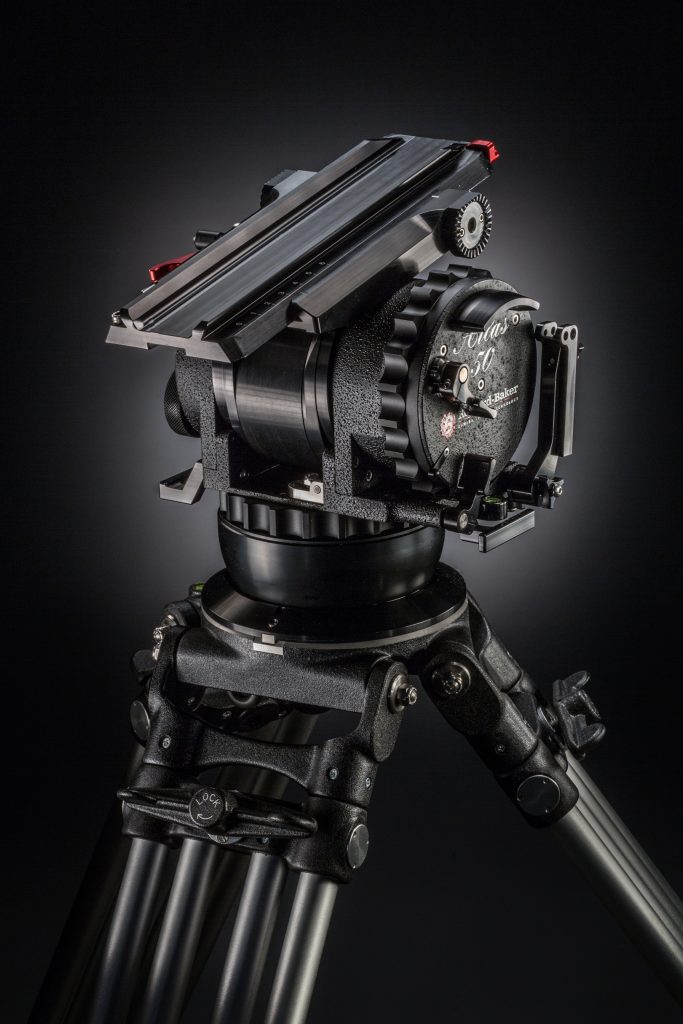

Atlas 50 Fluid headAtlas 50 Fluid Head

New Atlas 50 Fluid Head for Alexa, RED Epics and Sony F55 …etc.

    • Tilt range + & – 90 degrees
    • Pan range 360 degrees continuous Pan bar mounts.
    • Two on ratchet discs
    • Lifting handles integrated
    • Head bases 150 m/m or Mitchell ( adaptor)
  • Stand off protection on both sides of the head.
  • Sand proof sealed.
  • Short plate has 7” / 18 cm movement. The Long plate has 13” / 33 cm movement.
  • Fluid system, 7 steps pan & tilt with zero positions at either end of the scale.
  • Counterbalance can also go into “Free” position.
  • Spirit level with Tritium light source.
  • Adjustable Eyepiece levelling bracket.
  • Smooth positive braking on pan & tilt.

On the Atlas 50 model, the Fluid/Drag power of the head has been increased by 50% compared to the Atlas 40 model.

This results in the lowest fluid/drag power setting on the Atlas 50 (position 1) being an equivalent to the fluid/drag power setting on the Atlas 40 as 3.

The Technical specs are as follows.

  • Weight 10.50 Kgs
  • Height 265 mm / 10 ½”
  • From the tripod bowl 215 mm / 8 /12”
  • With Mitchel fitting 250 mm / 10”
  • Width 250 mm / 10”
  • Depth b175 mm / 7”
