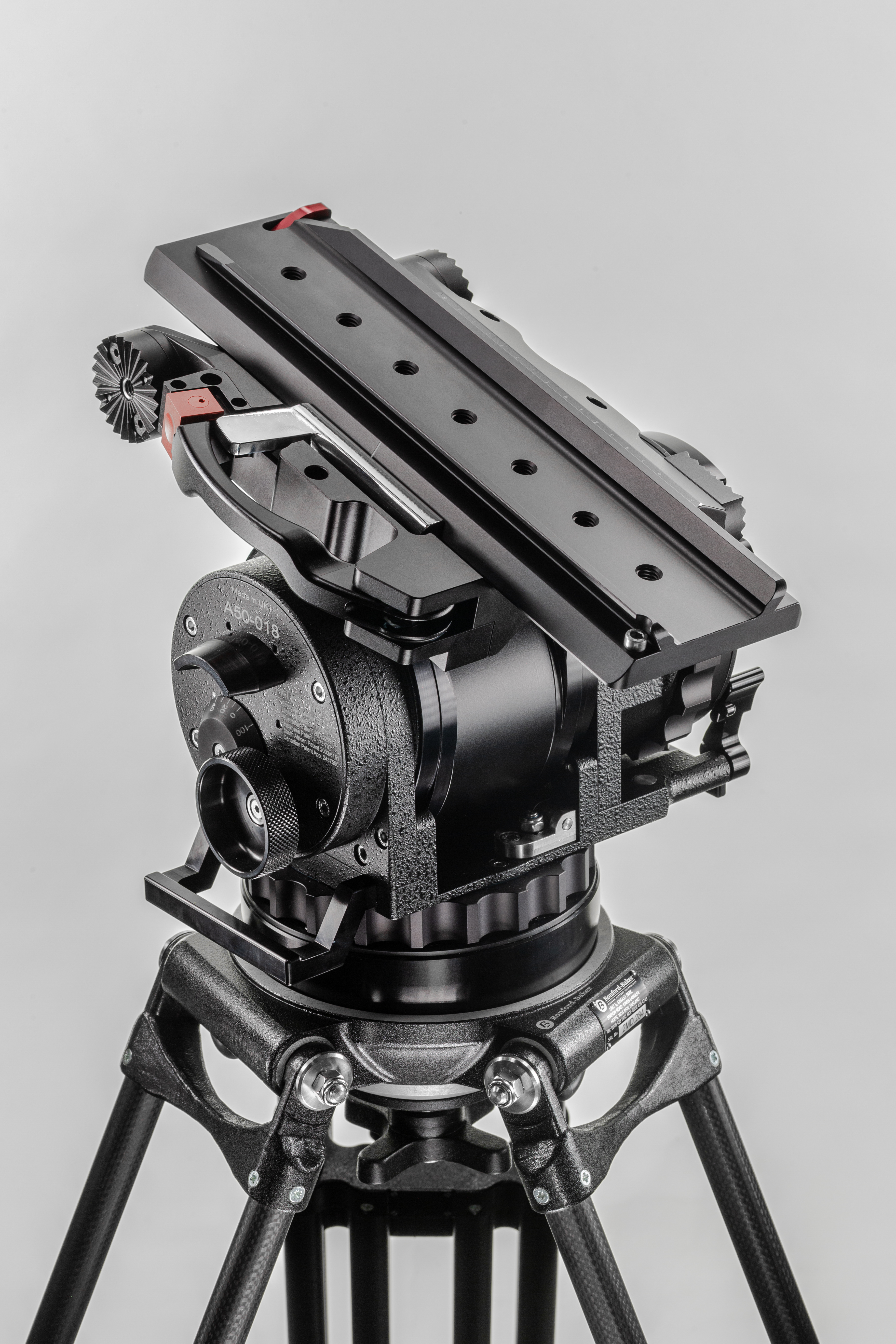

Atlas 50S Fluid Head

Atlas 50SNew Atlas 50S Fluid Head with Snap & Go side-loading mechanism, allows fast mounting and easy adjustment for camera slide plates, compatible with Arri Slide plates and O’Connor.

  • Tilt range + & – 90 degrees
  • Pan range 360 degrees continuous Pan bar mounts.
  • Two on ratchet discs
  • Lifting handles integrated
  • Head bases 150 m/m or Mitchell ( adaptor)
  • Stand off protection on both sides of the head.
  • Sand proof sealed.
  • Short plate has 7” / 18 cm movement. The Long plate has 13” / 33 cm movement.
  • Fluid system, 7 steps pan & tilt with zero positions at either end of the scale.
  • Counterbalance can also go into “Free” position.
  • Spirit level with Tritium light source.
  • Adjustable Eyepiece levelling bracket.
  • Smooth positive braking on pan & tilt.

The Technical specs are as follows.

  • Weight 10.50 Kgs
  • Height 265 mm / 10 ½”
  • From the tripod bowl 215 mm / 8 /12”
  • With Mitchel fitting 250 mm / 10”
  • Width 250 mm / 10”
  • Depth b175 mm / 7”
